Fluorescent Microscope Trinocular B/G
Six Holes Fluorescent Unit Can Hold Up To 5 Fluorescent Filter + Bright Field View
100W Mercury Fluorescent Light Source For Observe In Pathology, Clinical Lab Use
Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
High Rigidity Body Structure Design Supply High Steady And Easy Handle
Different Color Available To Customize Your Model!
100W Mercury Fluorescent Light Source For Observe In Pathology, Clinical Lab Use
Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
High Rigidity Body Structure Design Supply High Steady And Easy Handle
Different Color Available To Customize Your Model!
Quantity：
Send an inquiry
add to cart
- Six Holes Fluorescent Unit Can Hold Up To 5 Fluorescent Filter + Bright Field View
- 100W Mercury Fluorescent Light Source For Observe In Pathology, Clinical Lab Use
- Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
- High Rigidity Body Structure Design Supply High Steady And Easy Handle
- Different Color Available To Customize Your Model!

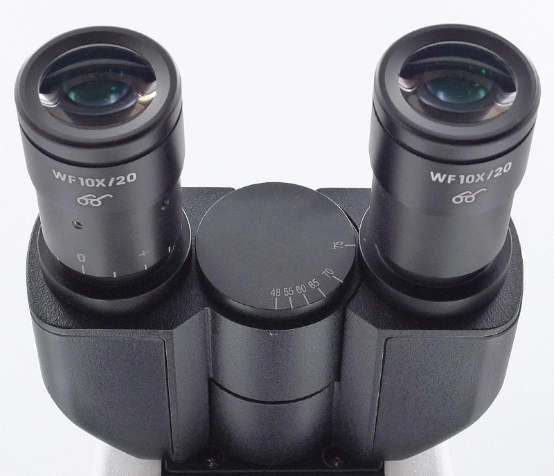

Seidentopf Head
Inclined at an angle of 30°, rotatable through 360°, with an interpupillary distance range of 48-75mm. It is equipped with a high eyepoint eyepiece, which is convenient for people with different sitting heights. The eyepiece lens barrel adopts an integrated design, which prevents the eyepiece from being lost or contaminated and improves the overall performance of the microscope.
Quadruple, Backward
4 types of objective lenses are available: Achromatic, Plan, Infinity E - Plan, and Infinity Plan.

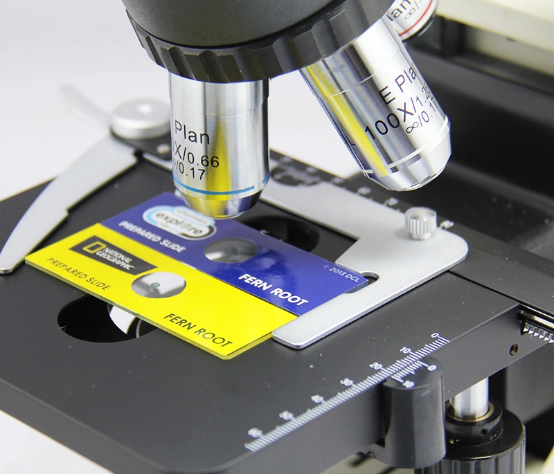

Double Slide Holder Working Stage
Mechanical Stage Dimensions: 145 mm × 140 mm, Stroke: 76 mm × 52 mm, Resolution: 0.1 mm.

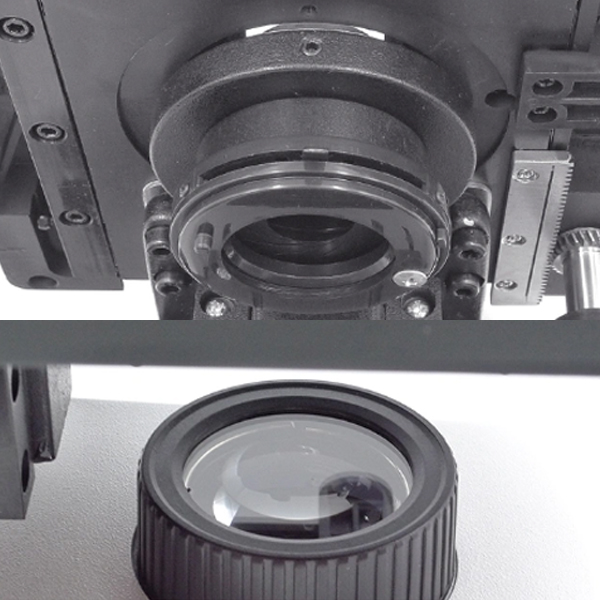

Condenser & Light Source
Abbe condenser with a numerical aperture of 1.25, an iris diaphragm, a rack and pinion mechanism for up and down movement, and equipped with a filter holder.
3W-LED Illumination Systems

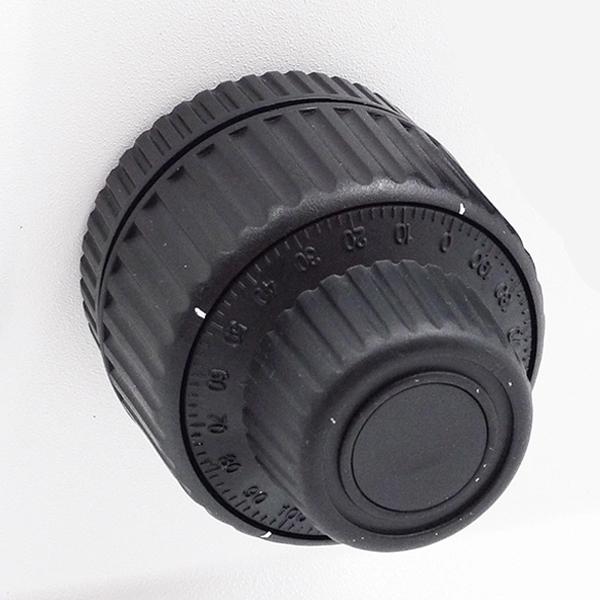

Coaxial Focusing with Both Coarse and Fine Adjustment

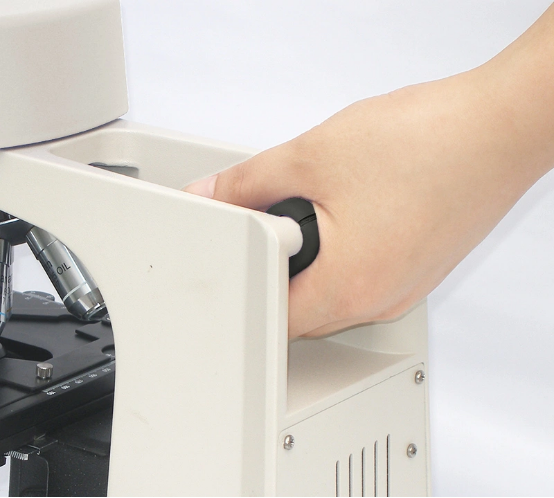

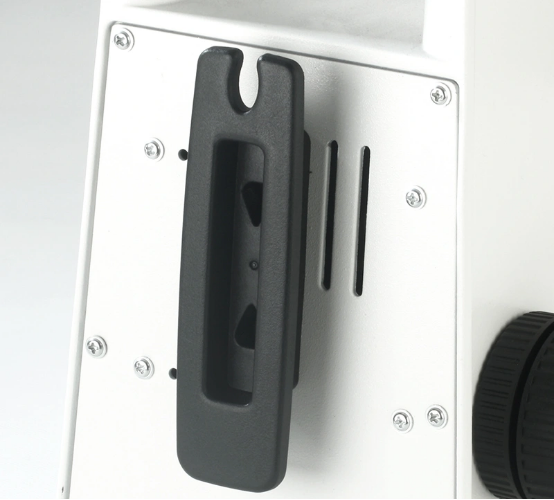

Holding aperture at the rear
Wire Coiling Device

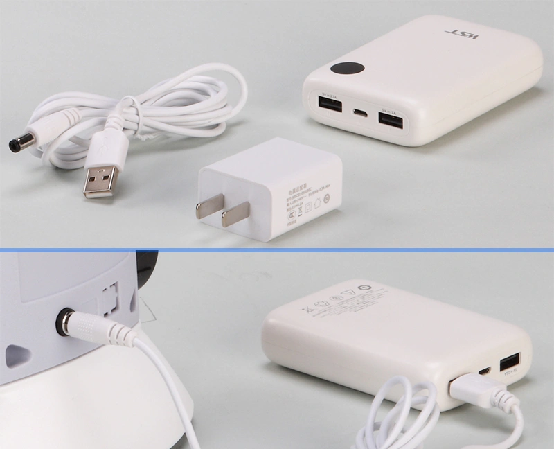

Powered by a safety low - voltage charger, it supports an input wide voltage range of 100V - 240V and has an output of 5V 1A. It also supports power bank supply for outdoor use.

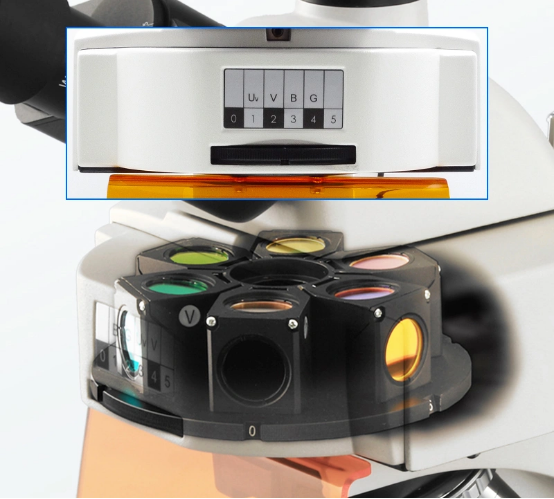

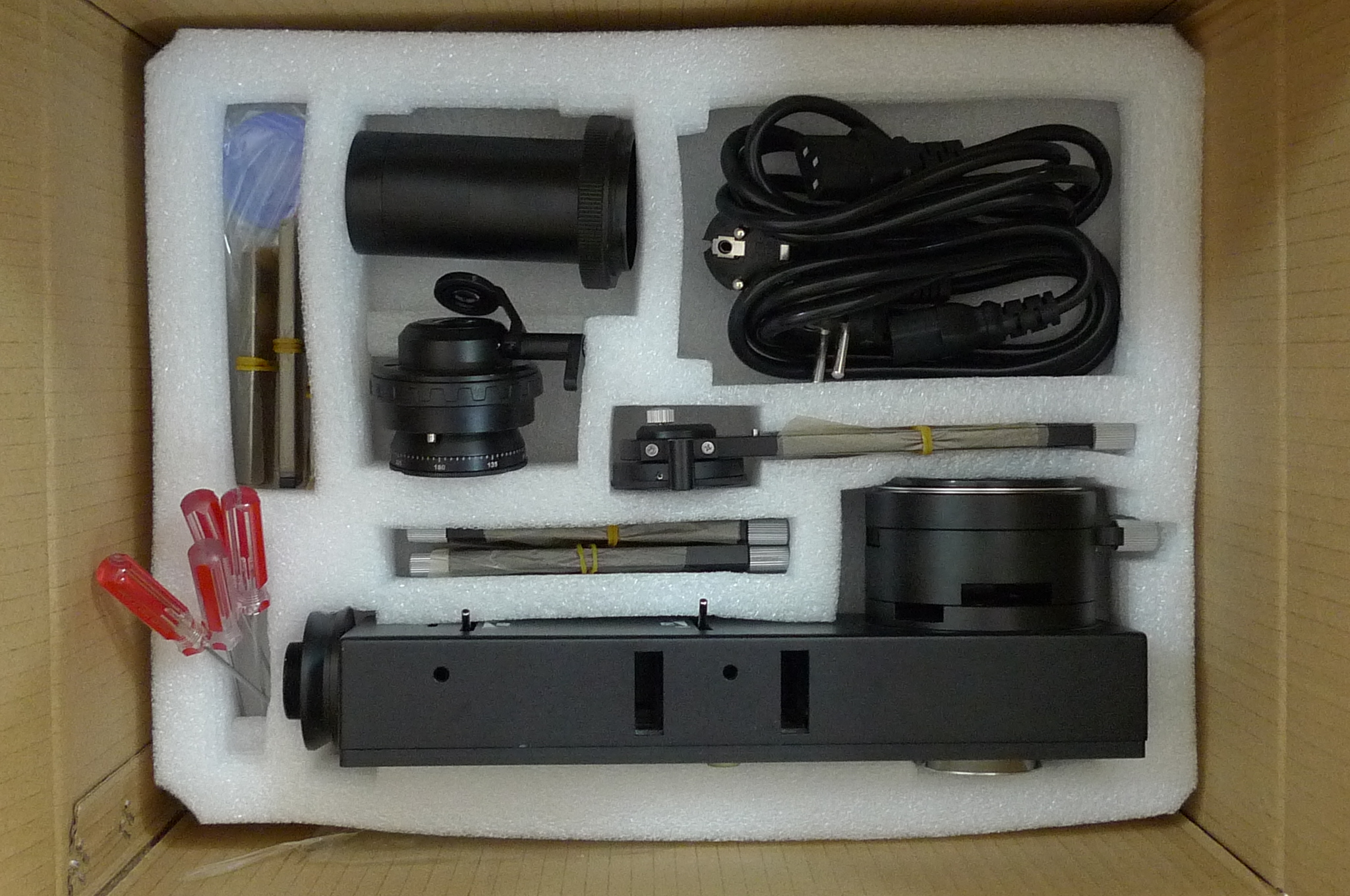

6 Holes Disk Fluorescence Unit
It is capable of loading a maximum of 5 fluorescence filters, along with an additional slot for the bright field view.

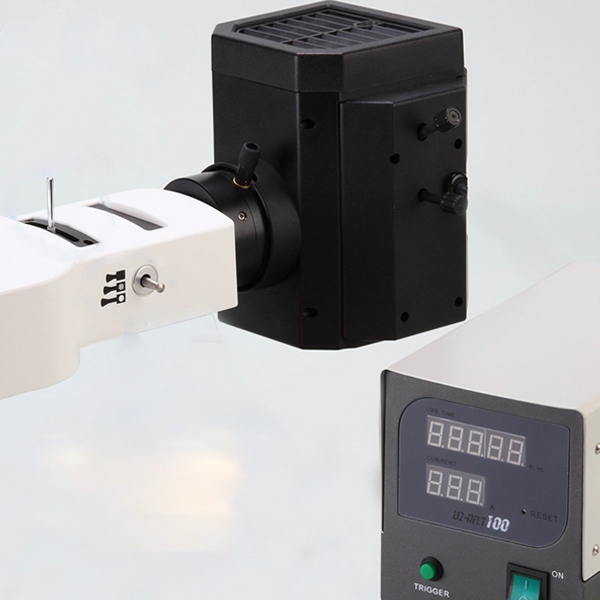

100W Mercury Lamp Fluorescent
IIllumination device that comes with a field diaphragm and a light switch lever.

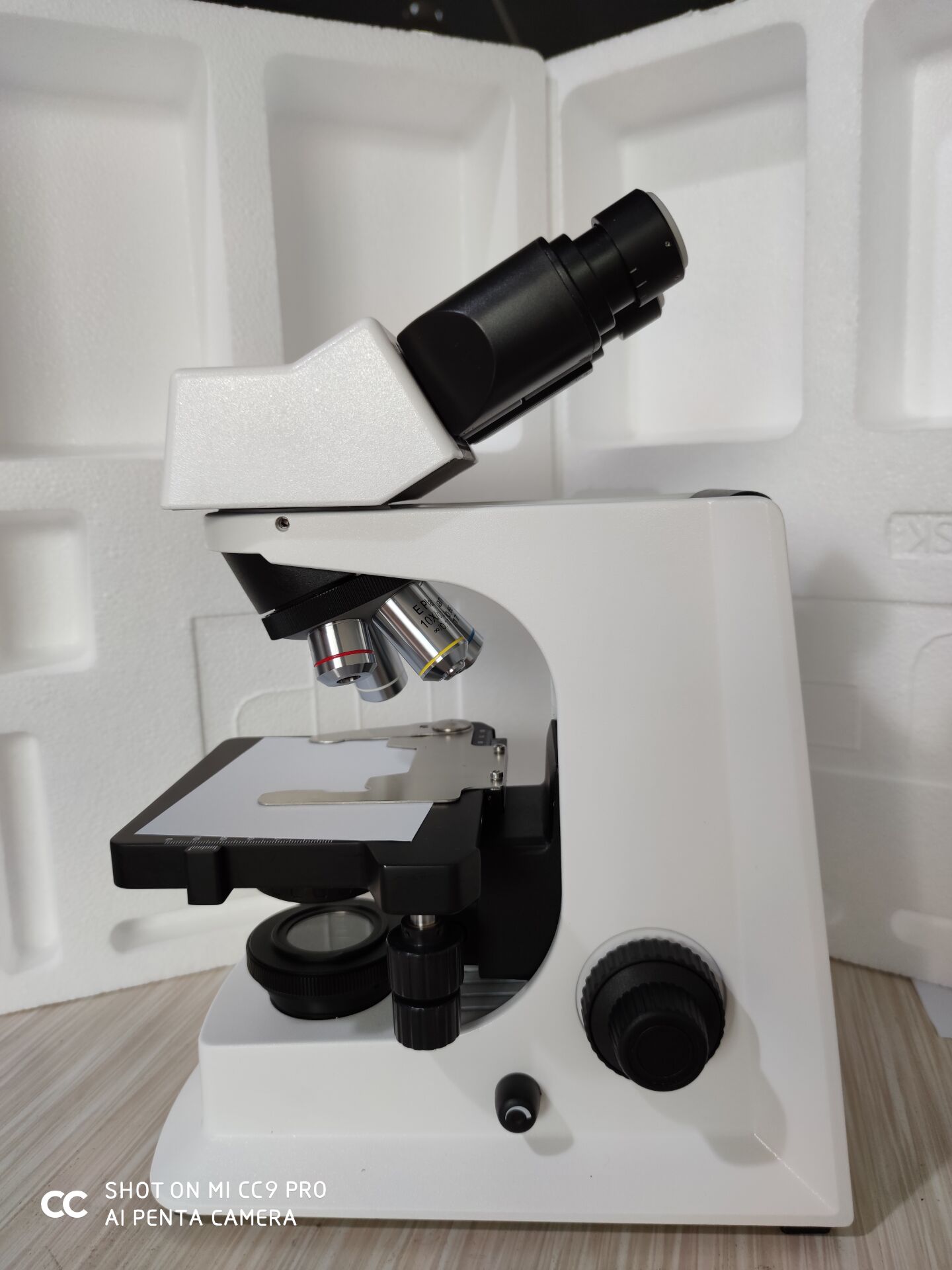

Other display
Clinical microscopes are precision optical instruments widely used in medical clinical laboratories and other settings. They are used for microscopic observation and analysis of various biological samples from the human body, such as blood, urine, cells, and tissue sections. They provide important evidence for the diagnosis, treatment, and monitoring of diseases.
