Laboratory Biological Microscope Binocular Infinity Plan
Ideal Lab Microscope Modular Design To Upgrade Freely
Trinocular Head With Switchable & Fixed Light Split Ratio Optional
Creative 100x Water Objective Instead Of Oil Objective For Easy Use & Clean
Large Mechanical Stage 175x145mm/76x52mm With Double Slide Holder
Standard 3W LED Koehler Illumination, Upgrade To Halogen 20W/30W Optional
Trinocular Head With Switchable & Fixed Light Split Ratio Optional
Creative 100x Water Objective Instead Of Oil Objective For Easy Use & Clean
Large Mechanical Stage 175x145mm/76x52mm With Double Slide Holder
Standard 3W LED Koehler Illumination, Upgrade To Halogen 20W/30W Optional
Quantity：
Send an inquiry
add to cart
- Ideal Lab Microscope Modular Design To Upgrade Freely
- Trinocular Head With Switchable & Fixed Light Split Ratio Optional
- Creative 100x Water Objective Instead Of Oil Objective For Easy Use & Clean
- Large Mechanical Stage 175x145mm/76x52mm With Double Slide Holder
- Standard 3W LED Koehler Illumination, Upgrade To Halogen 20W/30W Optional

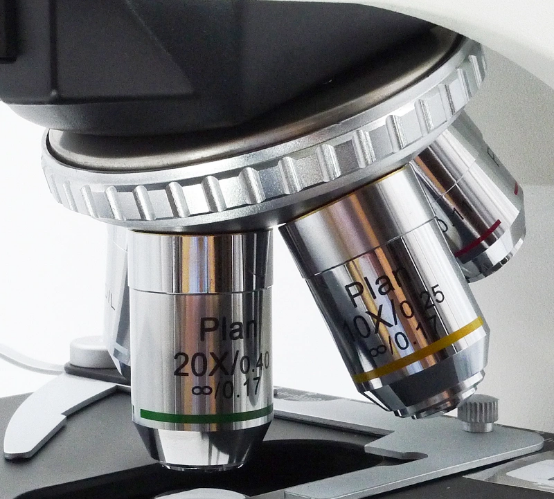

Quintuple, Backward
There is a large - sized, high - precision quintuple nosepiece. It is equipped with a polarizing analyzer slot. Infinity plan objectives with magnifications of 4x, 10x, 20x, 40x, and 100x are available.

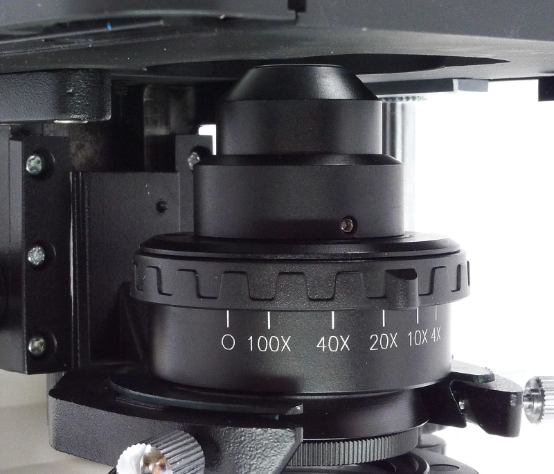

Abbe Condenser N.A.1.25
It features an iris diaphragm. The up - and - down movement is controlled by a rack and pinion mechanism. It comes with a filter holder. There is an iris scale marked on the condenser, which is applicable for objectives of 4x, 10x, 20x, 40x, and 100x magnifications.
3-watt LED Koehler illumination system, along with a field diaphragm.

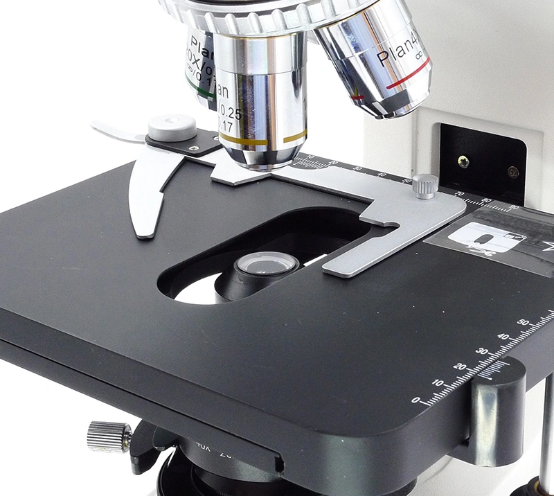

Working Stage
The size of the mechanical stage is 185 mm × 145 mm, and its travel range is 76 mm in one direction and 52 mm in the other direction. The scale accuracy is 0.1 mm, and it is equipped with a double slide holder.
3W LED Koehler Illumination with a field diaphragm
It is powered by a safety low voltage charger. The input features a wide voltage range of 100V to 240V, and the output is 5V at 1A. It also supports being supplied by a power bank, making it suitable for outdoor use.
Other display
Clinical microscopes are precision optical instruments widely used in medical clinical laboratories and other settings. They are used for microscopic observation and analysis of various biological samples from the human body, such as blood, urine, cells, and tissue sections. They provide important evidence for the diagnosis, treatment, and monitoring of diseases.
