Premium Upright Metallurgical Microscope for Quality Assurance
Best Reflect Light Metallurgical Microscope, 12V50W Halogen
Large Size Trinocular Head Eyepiece Tube Dia. 30mm With Light Split Switch E100:P0/E20:P80
SWF10x/22mm Eyepiece Dia.30mm Diopter Adjustable + Retical EyepiecCe With Micrometer
Metallurgical LWD Infinity Plan Objective 5x, 10x, 20x,50x,80x, 100x(Dry) Optional
Mechanical Stage 200x150mm/77x52mm With Quick Drop-Down For Extta 50mm Up/Down
Large Size Trinocular Head Eyepiece Tube Dia. 30mm With Light Split Switch E100:P0/E20:P80
SWF10x/22mm Eyepiece Dia.30mm Diopter Adjustable + Retical EyepiecCe With Micrometer
Metallurgical LWD Infinity Plan Objective 5x, 10x, 20x,50x,80x, 100x(Dry) Optional
Mechanical Stage 200x150mm/77x52mm With Quick Drop-Down For Extta 50mm Up/Down
Quantity：
Send an inquiry
add to cart
--Best Reflect Light Metallurgical Microscope, 12V50W Halogen
--Large Size Trinocular Head Eyepiece Tube Dia. 30mm With Light Split Switch E100:P0/E20:P80
--SWF10x/22mm Eyepiece Dia.30mm Diopter Adjustable + Retical EyepiecCe With Micrometer
--Metallurgical LWD Infinity Plan Objective 5x, 10x, 20x,50x,80x, 100x(Dry) Optional
--Mechanical Stage 200x150mm/77x52mm With Quick Drop-Down For Extta 50mm Up/Down
--Large Size Trinocular Head Eyepiece Tube Dia. 30mm With Light Split Switch E100:P0/E20:P80
--SWF10x/22mm Eyepiece Dia.30mm Diopter Adjustable + Retical EyepiecCe With Micrometer
--Metallurgical LWD Infinity Plan Objective 5x, 10x, 20x,50x,80x, 100x(Dry) Optional
--Mechanical Stage 200x150mm/77x52mm With Quick Drop-Down For Extta 50mm Up/Down

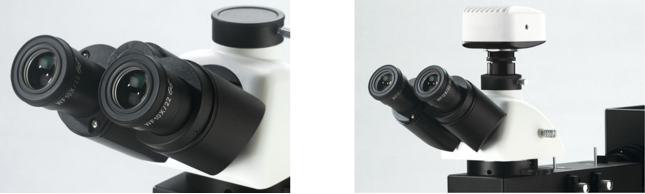

Trinocular Head With Switch Light Split Between E100:P0/E20:P80 The Eyepiece Tube Has Fix Screw To Prevent Eyepiece Falling Damage During Move Large Size Head With Eyepiece Tube And Eyepiece Dia.30mm.

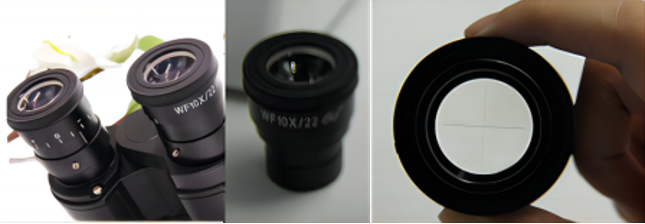

Super Wide Field10x/22mm Eyepiece Dia.30mm Diopter Adjustable Right Eyepiece With Micrometer X-0.1mm *180 Div/Y-Single Line

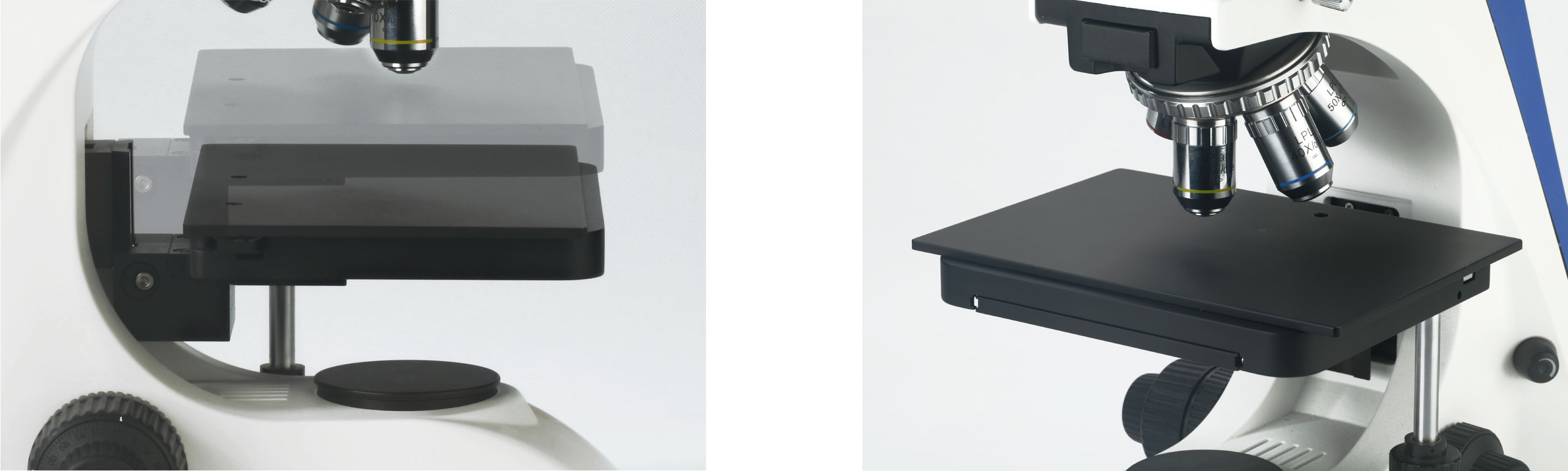

Double Layer Mechanical Size 200x150mm,Travel Range 77x52mm Stage Quick Drop-Down; Device For Extra 50mm Up/Down Range, More Convenient For Observing Big Size Sample.Oversized Three-layer Mechanical Stage Provides More Choice For Samples.
Other displays
Control The Amount Of Light According To Demand,The EffectIs More Perfect.

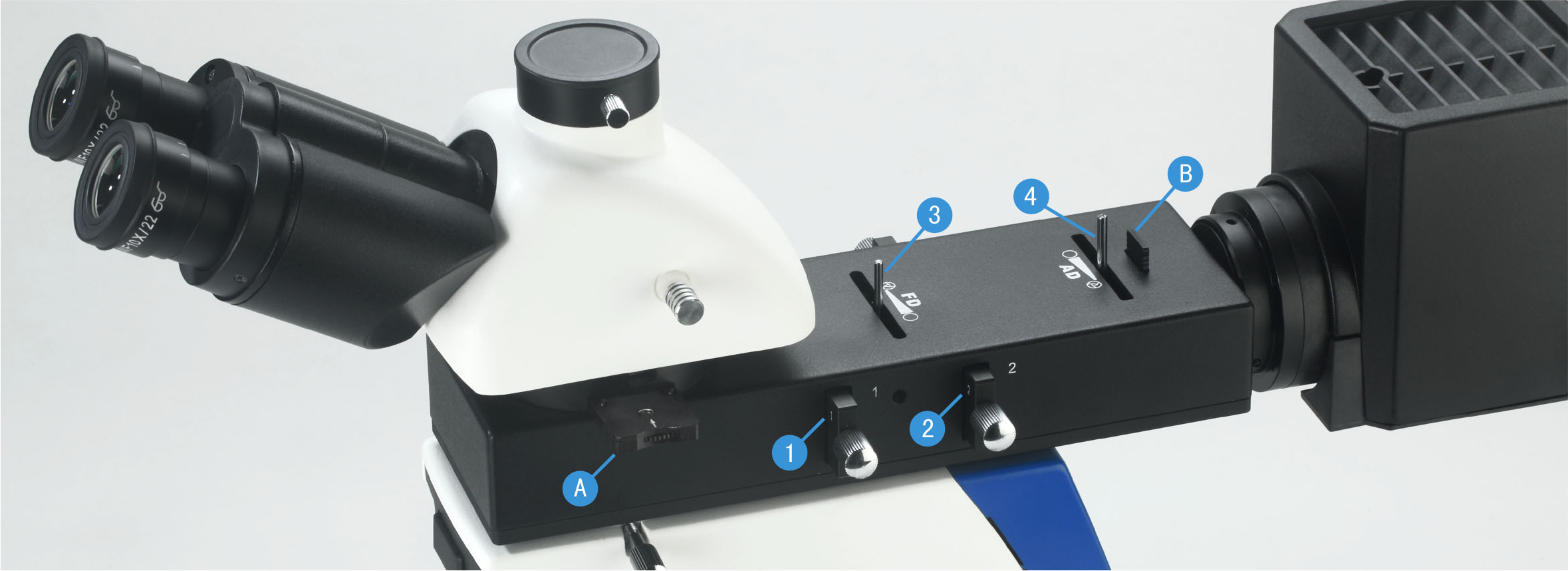

1.Polarizer 2.Filter switch handle 3.Field diaphragm 4.Aperture diaphragm A.Analyzer B. Ground glass slider
/5
