High-Precision Vernial Microscope Stage with Coarse & Fine Focus
--Monocular Vertical Head, Whole Body Inclination Adjustable
--Total Magnification 40x~1600x Available
--Coarse & Fine Focusing Knob, Focusing Range 50mm
--Single Layer Stage With Vernial Scale Attached
--Plan-Concave Mirror Dia. 50mm
--Total Magnification 40x~1600x Available
--Coarse & Fine Focusing Knob, Focusing Range 50mm
--Single Layer Stage With Vernial Scale Attached
--Plan-Concave Mirror Dia. 50mm
Quantity：
Send an inquiry
add to cart
--Monocular Vertical Head, Whole Body Inclination Adjustable
--Total Magnification 40x~1600x Available
--Coarse & Fine Focusing Knob, Focusing Range 50mm
--Single Layer Stage With Vernial Scale Attached
--Plan-Concave Mirror Dia. 50mm
--Total Magnification 40x~1600x Available
--Coarse & Fine Focusing Knob, Focusing Range 50mm
--Single Layer Stage With Vernial Scale Attached
--Plan-Concave Mirror Dia. 50mm

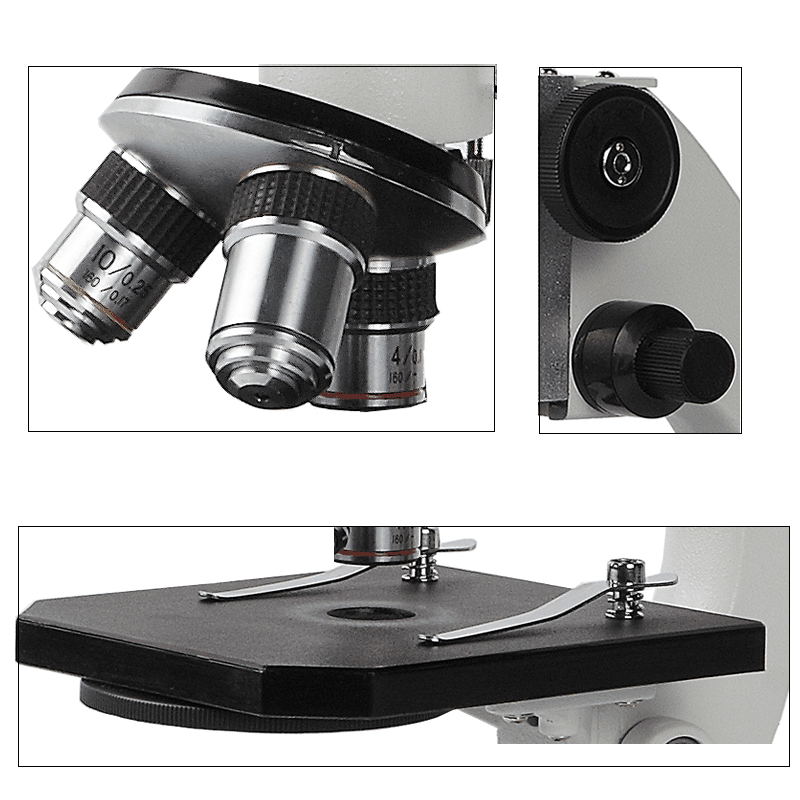

Head
Monocular Vertical Head, Whole Body Inclination Adjustable.

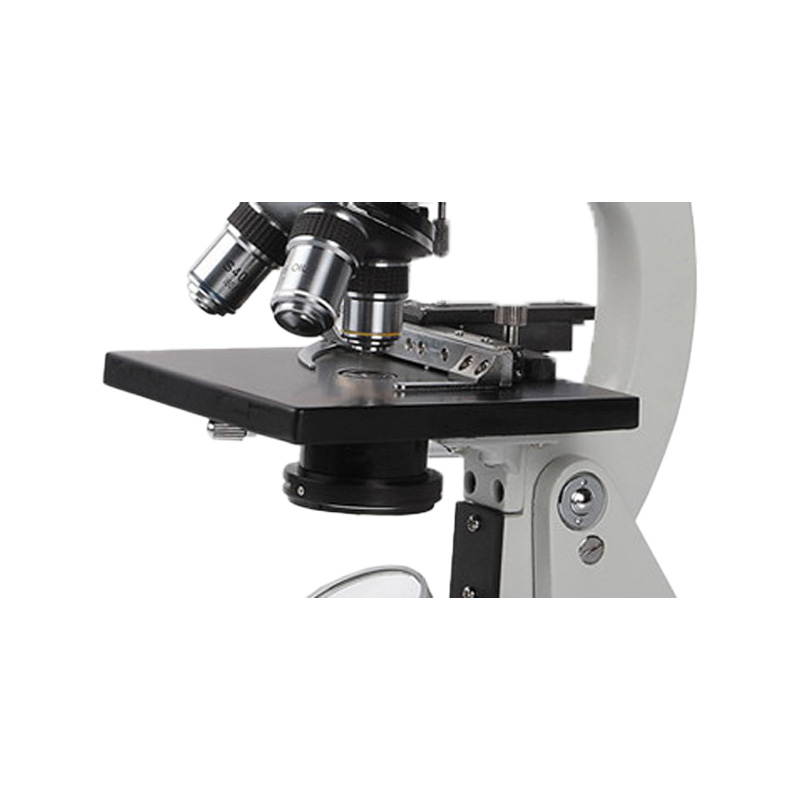

Working Stage
Stage with Specimen Clips, Size120x120mm,echanical Slide Holder Vernial Scale.

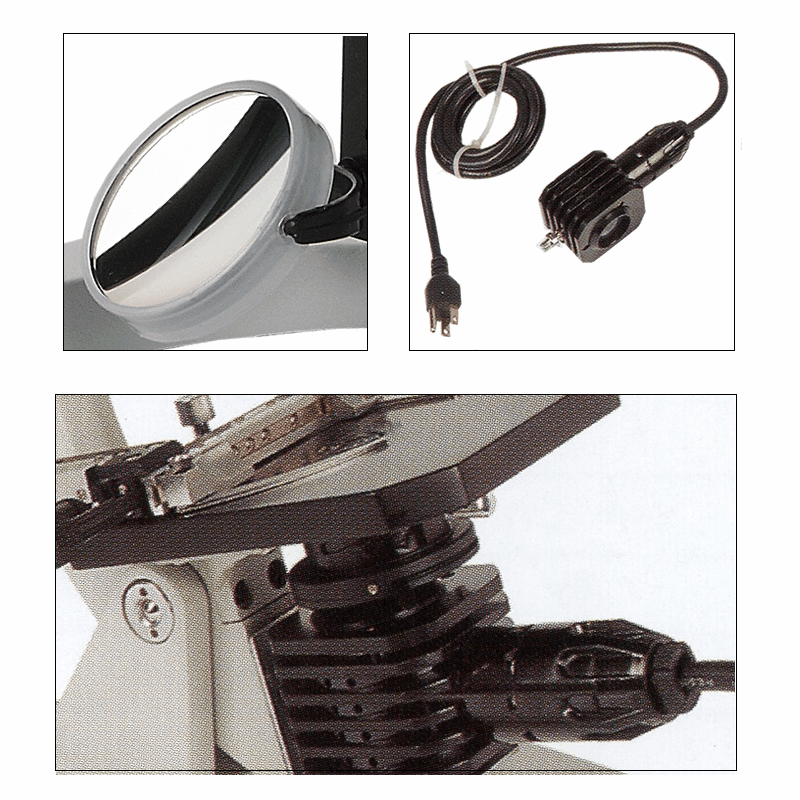

Illuminator
Concave-Plan Mirror Dia. 50mm.
