Polarizing Microscope Reflect Light Binocular
Reflect 5W LED Illumination + Swing Out Condenser N.A. 0.9/0.13 Center Adjustable
Head & Eyepiece With Joint Move Design To Keep Right Side Eyepiece's Cross Direction
Professional Polarizing Non-Stress LWD Infinity Plan Objective (Reflecting)
Professional Polarizing Lens, Analyzer With Bertrand Lens, λ, λ/4 Slip, Quartz Wedge.
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
Head & Eyepiece With Joint Move Design To Keep Right Side Eyepiece's Cross Direction
Professional Polarizing Non-Stress LWD Infinity Plan Objective (Reflecting)
Professional Polarizing Lens, Analyzer With Bertrand Lens, λ, λ/4 Slip, Quartz Wedge.
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
Quantity：
Send an inquiry
add to cart
- Reflect 5W LED Illumination + Swing Out Condenser N.A. 0.9/0.13 Center Adjustable
- Head & Eyepiece With Joint Move Design To Keep Right Side Eyepiece's Cross Direction
- Professional Polarizing Non-Stress LWD Infinity Plan Objective (Reflecting)
- Professional Polarizing Lens, Analyzer With Bertrand Lens, λ, λ/4 Slip, Quartz Wedge.
- Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
Retical Eyepiece WF10x/20mm, Dia.30mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable

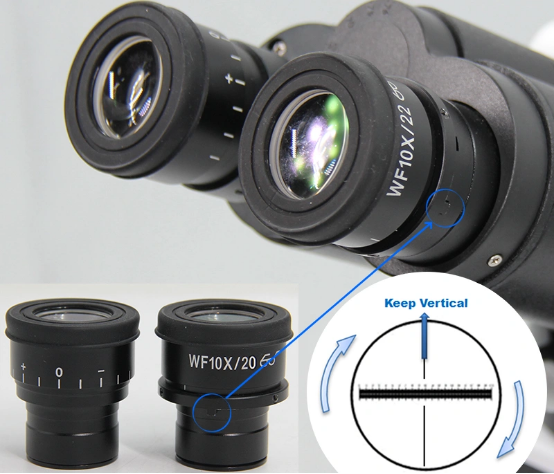

Joint Move Design: Specifically designed for polarizing microscopes. Even when the eyepiece tube is rotated, it ensures that the crosshair in the right - side eyepiece's field of view remains in the vertical direction.
Super Wide Field Eyepiece SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable

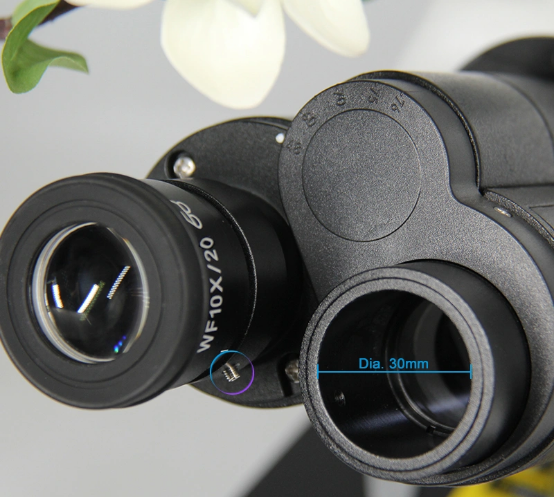

The eyepiece tube is equipped with a fixing screw to avoid the eyepiece from falling and getting damaged during movement.

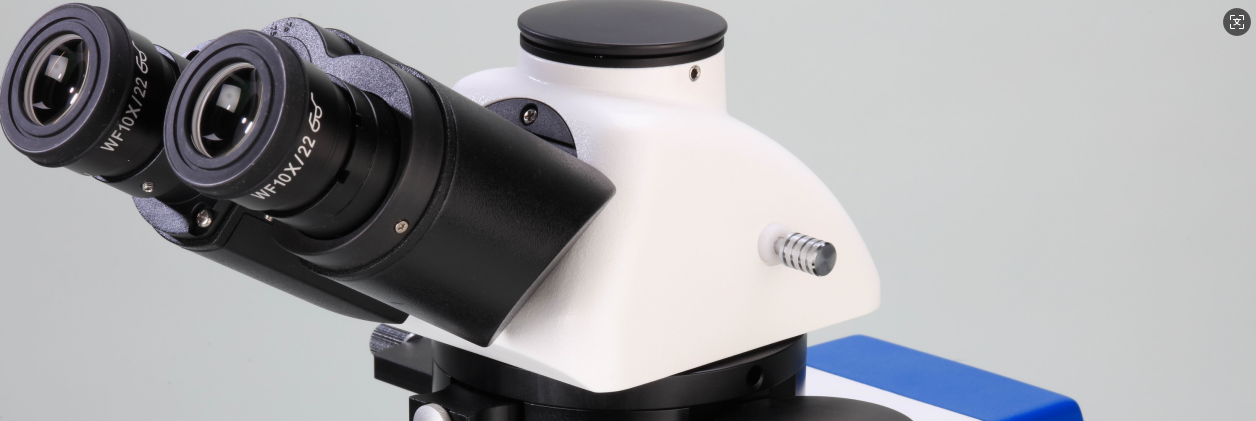

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 & Fixed E80:P20
Fixed Light Split: 80% to eyepiece, 20% to photo. View image in both paths at once.
Switch Light Split: Option 1: 100% eyepiece, 0% photo; Option 2: 0% eyepiece, 100% photo. Camera gets full light for photos.
Switch Light Split: Option 1: 100% eyepiece, 0% photo; Option 2: 0% eyepiece, 100% photo. Camera gets full light for photos.

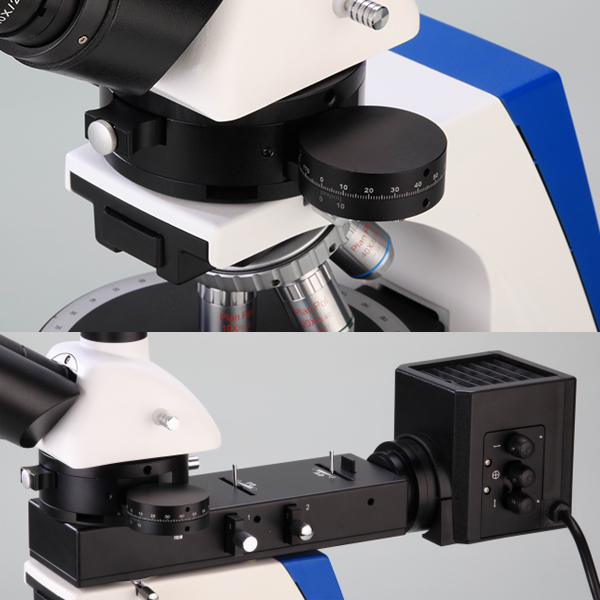

Analyzer Rotatable 360°, Module Type, Can Be Locked
There is a built - in Bertrand lens with adjustable focus. It also has a compensator slide and a slot for inserting a quartz wedge slide.

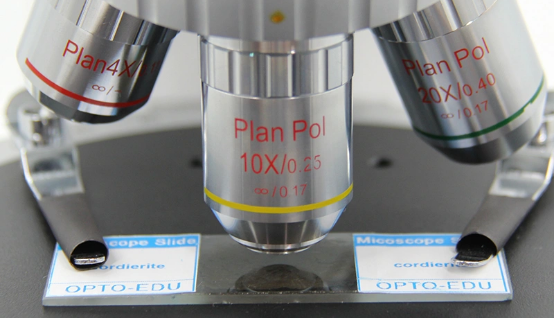

Large Size High Precision Centering Quintuple Nosepiece
Non - stress infinity plan transmitting objectives with magnifications of 4x, 10x, 20x, and 40x are available.
Note: The yellow mark on the nosepiece indicates the standard position for the 10x objective. The remaining objectives should be installed in a clockwise direction from high - power to low - power, as shown in the picture above.
Note: The yellow mark on the nosepiece indicates the standard position for the 10x objective. The remaining objectives should be installed in a clockwise direction from high - power to low - power, as shown in the picture above.

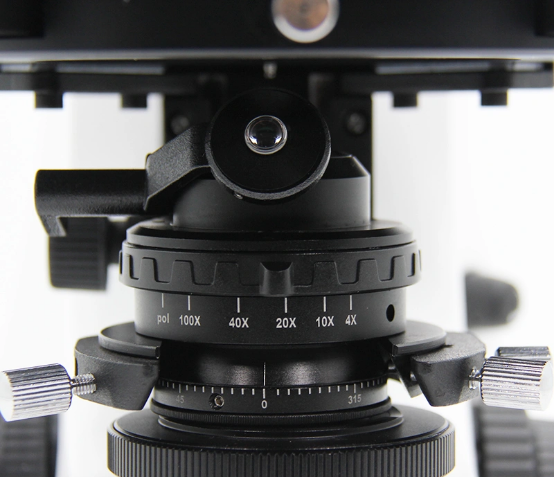

Swing-out Condenser, N.A.0.9/0.13, With Polarizer For A15.2601-T&RT
The lens at the bottom has a scale and can be locked.
Swing the lens in when observing with a high - power objective to get a great image.
3W LED Koehler Illumination with a field diaphragm
It is powered by a safety low voltage charger. The input features a wide voltage range of 100V to 240V, and the output is 5V at 1A. It also supports being supplied by a power bank, making it suitable for outdoor use.
Other display
Clinical microscopes are precision optical instruments widely used in medical clinical laboratories and other settings. They are used for microscopic observation and analysis of various biological samples from the human body, such as blood, urine, cells, and tissue sections. They provide important evidence for the diagnosis, treatment, and monitoring of diseases.
