Premium Lwd Plan Microscope with Infinity Optical System

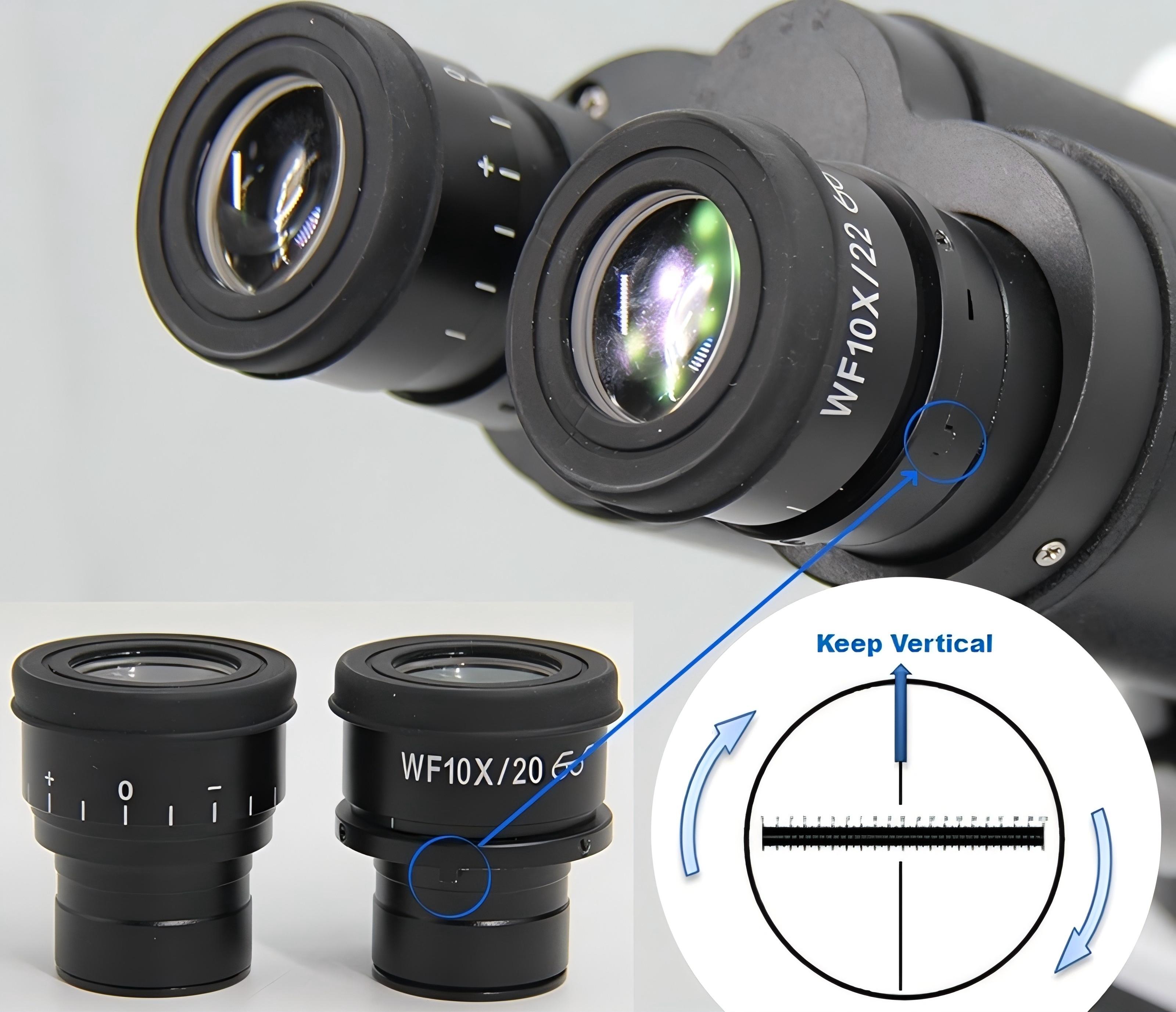

Tricocular Head With Switch Light Split Between e100:P0/E20:P80 Retical Eyepiece WF10X/22M,Dia.30mm,With Micrometer X-0.1mm*180 Div/Y-Single Line,Diopter Adjustable Specially For Polarzing Microscope With position Pin For Joint Move,In Right Side.
Quantity：
Send an inquiry
add to cart
Tricocular Head With Switch Light Split Between e100:P0/E20:P80 Retical Eyepiece WF10X/22M,Dia.30mm,With Micrometer X-0.1mm*180 Div/Y-Single Line,Diopter Adjustable Specially For Polarzing Microscope With position Pin For Joint Move,In Right Side.

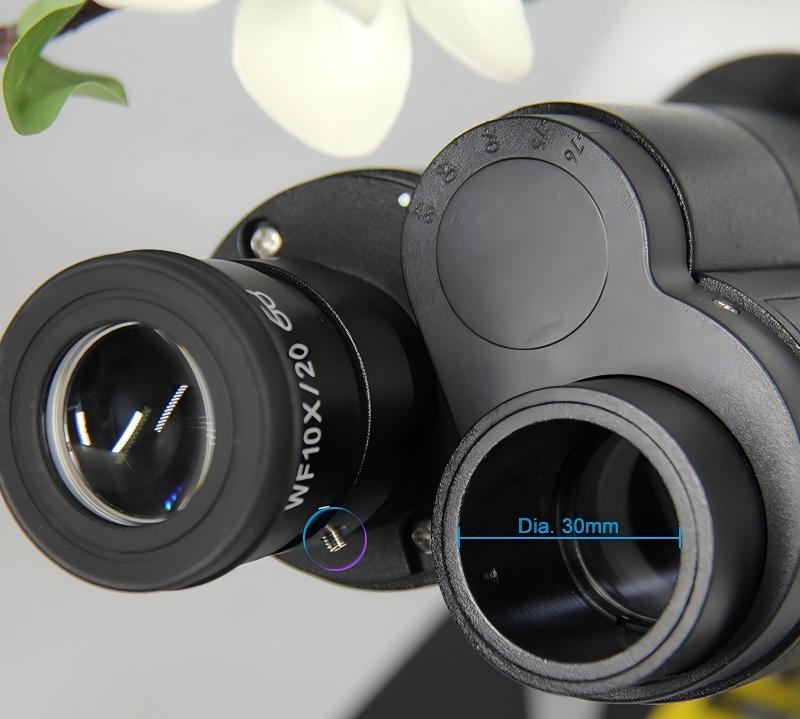

Super Wide Field Eyepiece SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable The Eyepiece Tube Has Fix Screw To Prevent Eyepiece Falling Damage During Move.

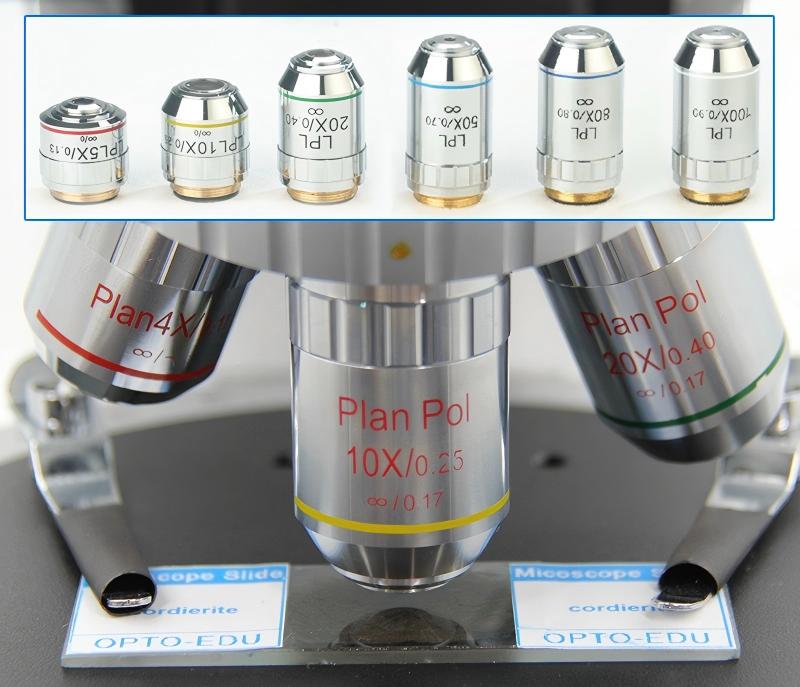

Large Size High Precision Centering Quintuple Nosepiece, Non-Stress Infinity Plan Objective (Transmitting) 4x,10x,20x,40x Available
Remark: The Yellow Mark On Nosepiece Is Standard Position For 10x Objective, The Rest Objectives Should Be Mounted From High To Low Power In Clockwise Direction, As Above Picture Shown.
Remark: The Yellow Mark On Nosepiece Is Standard Position For 10x Objective, The Rest Objectives Should Be Mounted From High To Low Power In Clockwise Direction, As Above Picture Shown.

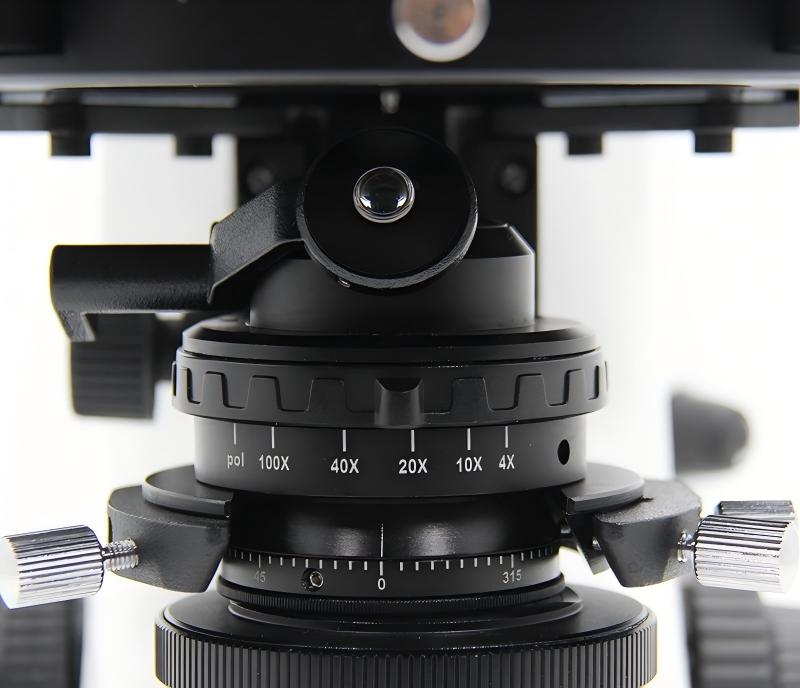

Lens In Bottom, With Scale, Can Be Locked.
Swing The Lens In To Get Excellent Image When Using High Power Objective To Make Observation.
Swing The Lens In To Get Excellent Image When Using High Power Objective To Make Observation.
